LCD – LED Monitor

Menu Service :    Lcd Led Monitor


PALAPA SERVICE CENTER melayani perbaikan Lcd Led Monitor, dengan berbagai merek, tipe dan ukuran ( 9 inch, 10″, 11″, 12″, 14″, 15″, 16″, 17″, 19″, 21″, 24″, 26″, 32″, 40″, .. ).

Merek – merek yang pernah kami tangani selama ini :

ACER, ADVANCE, AOC, BENQ, COMPAQ, DELL, ENVIRO, GTC, HP, IBM, IODATA, INVISION, INCO, KDS, KT, LG, MAG, NICO, PACKARD BELL, PHILIPS, POLYVIEW, PROLINK, RADIUS, RANGER, RASTEROPS, RELION, SAMSUNG, SHARP, SONY, STARLOGIC, VIEWSONIC, ZYREX.

Macam – macam contoh gejala kerusakan yang umum terjadi dan penyebab kerusakan pada monitor LCD:

Kerusakan
Fungsi Bagian dan Kerusakan Umum
POWER SUPPLY memberikan tegangan Vdc dan arus listrik tertentu yang sangat stabil untuk bagian Inverter dan Mainboard LCD serta Panel LCD.
  Kerusakan pada power supply / adaptor dapat menyebabkan :
    – LCD mati,
    – nyala sebentar lalu mati,
    – lampu nyala tapi tidak tampil gambar,
    – kalau sudah lama (1-2 jam), lalu mati,
    – nyala bagus, kalau dimatikan tidak bisa dihidupkan lagi,
    – tampilan kadang bagus, kadang tidak bagus

MAINBOARD memproses sinyal input RGB dan Sync H/V, mengolah resolusi dan matriks gambar yang tepat pada panel LCD, mengendalikan lampu backlight dan Inverter.
  Kerusakan pada mainboard dapat dilihat dari gejala seperti, lampu power nyala, tapi .. :
    – tidak ada tampilan gambar,
    – tampilan hanya ada pada resolusi tertentu,
    -ada tampilan, lalu hilang kalau sudah nyala agak lama,
    – ada tampilan ‘No Signal .. ‘ atau ‘Input Resolution is out of range’ dll saat kabel vga tidak dihubungkan,

INVERTER mendapat suplai daya dari power supply / adaptor, menghasilkan tegangan tinggi pada lampu backlight untuk menerangi LCD.
  Kerusakan pada Inverter dapat menyebabkan :
    – tidak ada tampilan,
    – nyala sebentar lalu mati,
    – ada tampilan, tapi gelap sekali,
    – lampu power kedap-kedip, dan dapat menyebabkan power supply ikut rusak,
    – tampilan kedap-kedip, terang gelap,
  PERHATIAN : Tegangan Inverter sangat tinggi, dapat membahayakan keselamatan jiwa bila tidak ditangani secara profesional atau oleh ahlinya !!!

PANEL LCD sebagai penampil gambar yang menggunakan teknologi crystal cair (Liquid Crystal) maupun pengembangannya, merupakan bagian part yang paling mahal dari sebuah LCD Monitor.
  Kerusakan pada panel LCD ini, antara lain seperti :
    – dead pixel, ada satu atau beberapa pixel mati maupun nyala terang yang tidak dapat berubah sesuai gambar tampilan layar,
    – tampilan bergaris tidak ada gambar,
    – tampilan bergaris berubah-ubah tempat,
    – tidak ada tampilan
    – terang, tapi tidak ada tampilan


Catatan :

  • kerusakan lebih mudah ditemukan dan diperbaiki bila LCD yang rusak belum pernah dibongkar.
  • biaya kerusakan suatu bagian tergantung pada penggantian spare part masing2 LCD, dapat berbeda antar merek, tipe, ukuran, dan walaupun merek jenis dan ukuran sama.

Untuk bantuan service / perbaikan, silakan hubungi PALAPA SERVICE CENTER di :

Mangga Dua Square lt.2 Blok B No.46-47, Jl. Gunung Sahari Raya No.1, Jakarta Utara, Indonesia, No. Telp. 021 62310383, atau aYong 08119307676 untuk konsultasi.


Berikut gejala yang sering terjadi pada merek – tipe masing-masing :


ACER S231HL



Model No. S231HL
Version S231HL bid
Part number ET.VS1HA.003
Made in China, Oct 2010

Adaptor : 19V 2.1A
Tipe layar : Led LG ??230WF5

Gejala kerusakan :   – Nyala sebentar lalu mati, tampilan blank.


AOC IF23

AOC IF23

Model : TFT23W90PS
Made in China, May 2010

Tipe layar : Lcd LG LM230WF2, 4 lamps
Gejala kerusakan : VGA no input signal, tidak ada sinyal input VGA

Tipe lain : 1619SW, A3205, LM7201


LG 22MP65HQ-P

LG 22MP65HQ-P



Model : 22MP65HA, Made in Indonesia, Okt 2014

Jenis : Monitor LED, menggunakan Adaptor
Tipe Layar Led : LM215WF3

Gejala kerusakan :   – Tampilan di layar bergaris, gambar blank hitam / putih.

Tipe lain :

D2342P-PN, D2343P-BN, DM2350A-PZ, DM2780A-PZ, E1600S-PN, E1641S-PN, E1642C-BN, E1910S-BN, E1940S-PN, E1940T-BN, E1941S-BN, E1941S-BNX, E1941T-BN, E1942C-BN, E1942S-BN, E1951T-BN, E1960S-PN, E2041S-BN, E2041T-BN, E2042S-BN, E2042TC-BN, E2050T-PN, E2060T-PN, E2241T-BN, E2242T-BN, E2250T-PN, E2250V-PN, E2260V-PN, E2290V-SN, E2340V-PN, E2341V-BN, E2360V-PN, E2711PY-BN, IPS224V-PN, IPS225V-BN, IPS226V-PN, IPS236V-PN, IPS237L-BN, L1510B, L1510M, L1510SF, L1510T, L1511S, L1515S, L1520B, L1530SBNT, L1530SSNT,L1550S-BN, L1552S-BF, L1552S-SF, L1553S-SF, L1710B, L1717S-BN, L1719S-BF, L1553S-BF, L1719S-SF, L1720B, L1730SBFT, L1730SF, L1730SFK, L1740BQ, L1740BQC, L1742SE-PF, L1742T-SF, L1742TE-BF, L1750SQ-BF, L1750SQ-BN, L1750SQ-BN, L1752H-BF, L1752H-SF, L1752S-SF, L1753HR-SF, L1753S-BF, L1753T-BF, L1753T-SF, L1755TQ-PF, L1760SR-BF, L1760TQ-BF, L1770HQ-BF, L1770HR-WF, L177WSB-PF, L1780Q, L1810B, L1900R-BF, L1910S, L1917S-BN, L1930SBFT, L1930SQBFT, L1940BQC, L1942SE-PF, L194WS-SF, L194WT-SF, L1950B-SF, L1950SQ-SN, L1952H-BF, L1952HM-BF, L1952T-BF, L1953H-BF, L1953HR-SF, L1953S-SF, L1953T-BF, L1954SM-BF, L1960TQ-BF, L1960TR-BF, L196WSQ-BF, L196WTB-BF, L196WTQ-BF, L196WTQ-SF, L1970HR-BF, L1970HR-WF, L1982U-BF, L204WT-BF, L222WS-BN, L225WT-BF, L226WA-SN, L226WA-WN, L226WTP-BF, L226WTQ-WF, L3020T, L3200AK, LGE-W2243T-PF, LGE-W2343T-PF, M1717S, M197WA-PT, M197WAP-PT, M208WA-BT, M2241A-PM, M2241A-PT, M2241A-PTN, M2241A-PTP, M227WA-PT, M227WAP-PM, M227WAP-PT, M2341A-PT, M3201C-BN, M3202C-BA, M3702C-BAP, M4200C-BAF, M4201C-BA, M4210D-B21, M4714C-BAP, N1642W-PF, T1710BP-BN, W1642C-PF, W1642S-PF, W1643C-PF, W1643S-PF, W1742S-PF, W1942SE-BF, W1942TE-BF, W1943C-PF, W1943S-PF, W1943SE-PF, W1943SE-PFV, W1943T-PF, W1943TE-PF, W1952TE-PF, W1953S-PF, W1953T-PF, W1953TE-PF, W1954S-PF, W1954SE-PF, W1954TE-PF, W1954TQ-PF, W2043S-PF, W2043T-PF, W2053S-PF, W2053TQ-PF, W2242P-BF, W2243S-PF, W2243T-PF, W2253S-PF, W2253TQ-PF, W2253V-PF, W2254TQ-PF, W2254V-PF, W2261VP-PF, W2343S-PF, W2343T-PF, W2353V-PF, W2363D-PF, W2453V-PF, W2753V-PF


LG E1940S

Product Code E1940S-PNV.ATIWAVD
Model No. E1940SV
Indonesia, June 2010

Tipe layar : Led AU Optronics M185XW01
Adaptor 12V 2A

Gejala kerusakan : tidak ada tampilan, gambar gelap, gambar bergaris, tidak nyala, mati.






Dell E1912Hf

Made in China, Mar 2012 / Dec 2011

Jenis : Monitor LED
Tipe Layar Led : Chi Mei Optoelectronics M185BGE-L10

Gejala kerusakan :   – Tampilan gelap, gambar blank, layar hitam, tidak nyala, mati, no power.

Tipe lain :

1707FP, E2016H, P2217H, SE2716H, 1708FP, E2016HL, P2217Wh, SP2008WFP, 1908FP, E2016HV, P2310H, SP2009WFP, 1909Wb, E2209WFP, P2311H, SP2208WFP, 2007FP, E2210, P2312H, SP2309WFP, 2009WFP, E2210H, P2314H, SR2220L, 2208WFP, E2211H, P2314T, SR2320L, 2209WA, E2213, P2317H, ST2010B, 2407WFP, E2213H, P2317HWh, ST2210B, 2407WFP-HC, E2214H, P2411H, ST2220, 2408WFP, E2214Hv, P2412H, ST2220L, 2707WFP, E2215HV, P2414H, ST2220M, 2709W, E2216H, P2415Q, ST2220T, 3007WFP-HC, E2216HV, P2416D, ST2310, 3008WFP, E228WFP, P2417H, ST2310B, AW2210, E2310HWFP, P2714H, ST2320L, AW2310, E2311H, P2714T Multi Touch Monitor with LED, ST2321L, C7016H, E2313H, P2715Q, ST2410, C7017T, E2314H, P2717H, ST2410B, Crystal Monitor, E2316H, P2815Q, ST2420L, D1901N, E2414H, P4317Q, ST2421L, D2015H, E2416H, S1709WFP, SX2210T, D2015HC, E248WFP, S1909WFP, SX2210WFP, D2201, E2715H, S1909WN, U2211H, D2215H, E5515H, S1909WXWFP, U2212HM, D2215HC, G2210, S199WFP, U2311H, D2216H, G2410, S2009WFP, U2312HM, D3216H, IN1720, S2209WFP, U2410, D3217H, IN1910NWFP, S2216H, U2412M, E157FPT, IN1920, S2216M, U2413, E1609WFP, IN1930, S2230MX, U2414H, E1709WFP, IN1940MW, S2240L, U2415, E170S, IN2010NWFP, S2240M, U2417H, E1713S, IN2020, S2240T 21.5 Multi-Touch Monitor with LED, U2417HA, E1715S, IN2020M, S2309WFP, U2417HJ Wireless Charging Monitor, E178WFP, MR2217, S2316H, U2417HWI, E1909Wb, MR2416, S2316M, U2515H, E1909WDD, P170s, S2317HJ Monitor, U2711, E190S, P190s, S2317HWI Monitor, U2713H, E1910, P1911, S2330MX, U2713HM, E1910H, P1913, S2340L, U2715H, E1911, P1913s, S2340M, U2717D, E1912H, P1914S, S2340T Multi Touch Monitor, U2717DA, E1913, P1917S, S2409WFP, U2913WM, E1913S, P1917SWh Monitor, S2415H, U3011, E1914H, P2010H, S2440L, U3014, E1916H, P2011H, S2715H, U3415W, E1916HL, P2012H, S2716DG, UP2414Q, E1916HV, P2014H, S2740L, UP2516D, E198WFP, P2016, S2817Q, UP2715K, E2009WFP, P2017H Monitor, SE178WFP, UP2716D, E2010H, P2210, SE197FP, UP3017, E2011H, P2210H, SE198WFP, UP3214Q, E2013H, P2211H, SE2216H, UP3216Q, E2014H, P2212H, SE2216HV, UZ2215H, E2014T 19.5 Multi-Touch Monitor with LED, P2213, SE2416H, UZ2315H, E2015Hv, P2214H, SE2416HM, UZ2715H, E2016, P2217, SE2417HG, WR517 Wireless Module, E153FPC, E156FPC, ST2420LB, ST2310F, 2007FP6, 2007FPb, S1709WC, E228WFPC, P190SB, E177FPC, IN1930F, ST2210B, E176FPb, ST2320LF,  W185Q P4827A




Samsung SyncMaster SA10

Model : S19A10N
Model Code LS19A10NS/XD
Type : LS19A10
Made in China, May 2012 / Jan 2012
Colokan power : konektor model 8.
Tipe Lcd : BOE HT185WX1-501 2 lamps, AU Optronics M185XW01 v.8

Gejala kerusakan :   – Tampilan blank putih, panel LCD rusak




Samsung SyncMaster SA100

Model: LS19A100NS/XD
Type LS19A100

Made in China, Aug 2011

Adaptor 12/14v 2.14A
Jenis : Monitor LED
Tipe Layar Led : BOE HM185WX1-400

Gejala kerusakan :   – Tampilan gelap, gambar blank, layar hitam, tidak nyala, mati, no power.


Samsung SyncMaster SA300

Model: S19A300B
Model Code LS19A300BSV/XT
Type No LS19A300

Made in Thailand, Oct 2011

Adaptor 14v 2.14A
Jenis : Monitor LED
Tipe Layar Led : Samsung LTM185AT05

Gejala kerusakan :   – Tampilan gelap, gambar blank, layar hitam, tidak nyala, mati, no power.




BenQ FP71G+

Made in …, …

Jenis : Monitor LCD, 17″

Gejala kerusakan :   – Tampilan gelap, gambar blank, layar hitam, nyala sebentar lalu mati.

Tipe lain :

BL2201, BL2201M, BL2201PE, BL2201PT, BL2201PU, BL2205PT, BL2211M, BL2211TM, BL2400PT, BL2400PU, BL2405HT, BL2410PT, BL2411PT, BL2420PT, BL2420U, BL2420Z, BL2700HC, BL2700HT, BL2710PT, BL2711U, BL3200PT, BL3201PE, BL3201PH, BL3201PT, BL702A, BL902M, BL902TM, BL912, DL2020, DL2215, E2000W, E2200HD, E2200HDA, E2200HDP, E2200W, E2200WA, E2220HD, E2220HDP, E2400HD, E2420HD, E2420HDB, E2420HDP, E700, E700A, E700N, E700T, E900, E900A, E900HD, E900HDA, E900HDP, E900N, E900T, E900W, E900WA, E900WAD, E900WD, E900WN, E902HDP, E910, E910T, EL2200, ER3501, ER3501M, EW2420, EW2430, EW2430V, EW2440L, EW2440Z, EW2440ZC, EW2440ZH, EW2445ZH, EW2730, EW2730V, EW2740L, EW2750ZL, EW2755ZH, EW2775ZH, EZ2450L, FP202W, FP202WA, FP202WV2, FP202WV3, FP2091, FP2092, FP222W, FP222WA, FP222WH, FP231W, FP241VW, FP241W, FP241WZ, FP51G, FP51G+, FP531, FP537S, FP556S, FP567S, FP71E, FP71E+, FP71G, FP71GX, FP71G+, FP71G+U, FP71G+S, FP71V, FP71V+, FP71W, FP72E, FP72ES, FP72G, FP72G+, FP72G+D, FP72G+S, FP72V, FP72V+, FP731, FP731DVI, FP737S, FP737S-D, FP73E, FP73ES, FP73G, FP73GS, FP756MS, FP756S, FP757, FP75G, FP767, FP783, FP783+, FP785, FP785+, FP791, FP91E, FP91G, FP91GX, FP91GP, FP91G+, FP91G+U, FP91R, FP91V, FP91V+, FP92E, FP92ES, FP92G, FP92G+, FP92V, FP92W, FP92WA, FP92W-B, FP931, FP937S, FP93E, FP93ES, FP93G, FP93GP, FP93GS, FP93GX, FP93GW, FP93GWA, FP93GX, FP93GX+, FP93V, FP93V+, FP93VW, FP94G, FP94VW, FP95G, FP991, FP992, G2000W, G2000WA, G2000WAD, G2000WD, G2010W, G2010WA, G2010WP, G2010WP/G2010WAP, G2020HD, G2020HDA, G2025HD, G2025HDA, G2110W, G2110WA, G2200W, G2200WA, G2200WT, G2201W, G2210W, G2210WA, G2220HD, G2220HDA, G2222HD, G2222HDA, G2222HDAL, G2222HDH, G2222HDL, G2225HD, G2225HDA, G2250, G2250HM, G2251M, G2251TM, G2255, G2255A, G2320HD, G2320HDB, G2320HDBL, G2400W, G2400WA, G2400WAD, G2400WD, G2400WT, G2410HD, G2411HD, G2411HDA, G2412HD, G2420HD, G2420HDB, G2420HDBL, G2425HDB, G2450, G2450HM, G2750, G2750HM, G610HDA, G610HDAL, G610HDPL, G615HDPL, G700AD, G700D, G702AD, G702D, G900AD, G900D, G900HD, G900HDA, G900WAD, G900WD, G902HD, G910W, G910WA, G910WAL, G920HD, G920HDA, G920W, G920WA, G920WAL, G920WL, G922HD, G922HDA, G922HDAL, G922HDL, G922HDPL, G925HD, G925HDA, G950A, G950AM, G951A, G955A, GC2870H, GL2023A, GL2030, GL2030A, GL2030AM, GL2030M, GL2040, GL2040A, GL2040AM, GL2040M, GL2055, GL2055A, GL2055M, GL2230, GL2230A, GL2230AM, GL2230M, GL2231, GL2231A, GL2231AM, GL2231M, GL2240, GL2240A, GL2240M, GL2250, GL2250E, GL2250HM, GL2250M, GL2250TM, GL2251M, GL2251TM, GL2265, GL2430, GL2430HM, GL2430M, GL2440, GL2440HM, GL2450, GL2450H, GL2450HM, GL2450HT, GL2450M, GL2460, GL2460HM, GL2750HM, GL2760, GL2760H, GL930, GL930A, GL930AM, GL930M, GL931, GL931A, GL931AM, GL931M, GL940, GL940A, GL940AM, GL940M, GL941M, GL950, GL950A, GL950AM, GL950M, GL951A, GL951AM, GL955A, GW2240M, GW2245, GW2250, GW2250E, GW2250HM, GW2250M, GW2255, GW2255E, GW2255M, GW2260E, GW2260HM, GW2260M, GW2265, GW2265HM, GW2265M, GW2270, GW2270H, GW2320, GW2450, GW2450HM, GW2450M, GW2455H, GW2460, GW2460HM, GW2470H, GW2750, GW2750HM, GW2760, GW2760HM, GW2760HS, GW2765HT, GW2870H, M2200HD, M2400HD, M2700HD, P3200PT, PG2401PT, PV270, PV3200PT, RL2240H, RL2240HE, RL2450H, RL2450HT, RL2455HM, RL2460HT, RL2755HM, SW2401PT, SW2700PT, T201W, T201WA, T2200HD, T2200HDA, T2210HD, T2210HDA, T221W, T221WA, T241W, T241WA, T261W, T420, T505, T51WA, T52WA, T650, T705, T706, T71W, T720, T721, T900HD, T900HDA, T902HD, T903, T904, T905, T906, T91W, T921, TL550, V2200ECO, V2210, V2210ECO, V2210B, V2220, V2220H, V2220HP, V2220P, V2320, V2320H, V2400ECO, V2400W, V2410, V2410ECO, V2410B, V2410T, V2420, V2420H, V2420HP, V2420P, V920, V920P, VL2040A, VL2040AZ, VL2040ZE, VL2245Z, VW2220, VW2220H, VW2230, VW2230H, VW2235, VW2235H, VW2245, VW2245Z, VW2245ZE, VW2420, VW2420H, VW2430, VW2430H, VZ2250, VZ2350, VZ2350HM, VZ2470H, VZ2750, VZ2750C, VZ2770H, X2000W, X2200W, X900, X900W, XL2410T, XL2411T, XL2411Z, XL2411ZE, XL2420G, XL2420T, XL2420TE, XL2420TX, XL2420Z, XL2430T, XL2720T, XL2720Z, XL2730Z, XR3501

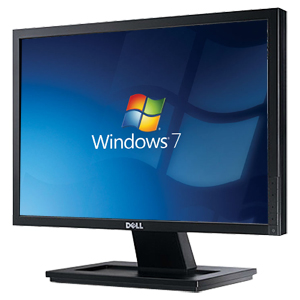

Dell E1910Hc

Made in China, March 2010

Jenis : Monitor LCD, 18.5″
Tipe Layar Led : BOE HT185WX1-100

Dell In1920b

Made in China, April 2011

Jenis : Monitor LCD, 18.5″
Tipe Layar : Samsung LTM185AT01

Gejala kerusakan :   – Tampilan tidak ada, layar putih, tidak nyala, mati, no power.




Asus VH162

Made in China, Feb 2010

Jenis : Monitor LCD, 15.6″
Tipe Layar : LG LM156WH1

Gejala kerusakan :   – Tidak nyala, mati, no power, korosi karena kecoa.








Dell 2007FPbdell-ultrasharp-2007fp-5nm-800

Made in China, Jan 2008

Jenis : Monitor LCD, 20.1″
Tipe Layar : LG Philips LM201U05

Gejala kerusakan :   – Tidak nyala, mati, no power, tidak ada tampilan.






Philips 190SW

Model HWS8190T

Made in China, Feb 2008 / May 2008

Resolusi Optimal : 1440 x 900

Jenis : Monitor LCD, 19.0″
Gejala kerusakan :   – Kadang mati, kedap-kedip, nyala sebentar lalu mati, no power, korosi karena kecoa.






Samsung SyncMaster 932GW

Model Code : LS19PEJSFV/XST
Type No: GH19WS
Made in Serembian, Malaysia (SDMA), Feb 2008

Jenis : Monitor LCD, 19.0″

Tipe Lcd : Samsung LTM190M2-L31
Gejala kerusakan :   – Kadang mati, kedap-kedip, nyala sebentar lalu mati, no power, layar gelap.




LG Flatron W1953SE

Tipe : W1953SE-PF
Model : W1953SV
Made in Indonesia, Des 2011

Jenis : Monitor LCD, 18.5″

Tipe Lcd : BOE ht185WX1-100
Gejala kerusakan :   – Kadang mati, kedap-kedip, nyala sebentar lalu mati, no power, tampilan putih.

Tipe lain :

22LK311, 22LN4000, 32LV3500-G, FLATRON E1642C-BN, FLATRON L1515S, FLATRON L1520B, FLATRON L1550S, FLATRON L1550S-BN, FLATRON L1550S-PF, FLATRON L1717S, FLATRON L1742S, FLATRON L1742SE, FLATRON L1752S, FLATRON L177WSB, FLATRON L19425 PF, FLATRON LX1721, FLATRON W1642C, FLATRON W1642S-PF, FLATRON W1643S, FLATRON W1643S , FLATRON W1643S-PF, FLATRON W1941S, FLATRON W1953S, FLATRON W1953SE, FLATRON W1953S-PF, FLATRON W2252TQ, LED 16EN33, M2241AN


Lenovo D186wAlenovo D186wA

2013.05.19
MTM : 2580-AB1
FRU No 57Y2306

Made in China, Nov 2010

Tipe Lcd : Chi Mei Optoelectronics M185B1-L07, 2 lamps, LG LM185WH1, 2 lamps

Gejala kerusakan :   – Power saving mode, off, tidak nyala, tidak tampil.

Tipe lain :

D185, D186, L195, L1961, L2060, L2061, L2062, L215, L215p, L222, L2261, L2262, L2361p, L2362p, L2364, L2461x, D1960, L2021, LI1920, LI1921, LI1931e, L1962, LI1963, LI2031, LI2032, LI2041, LI2054A, LI2063, LI2215S, LI2221s, LI2223s, LI2231, LI2241, LI2264d, LI2323s, LI2331, LI2341t, LI2342, LI2364d, LI2721s, LI2821, LS1921, LS1922s, LS1951, LS2013, LS2023, LS2221, LS2223, LS2251, LS2421p, Y27f, Y27g, Y27g RE, LI2321s, LI2361d, LS1922, LS1922s, LS2421p, LT1421, LT2323p


LG Flatron L177wsb-pf

Model No. L177WSBS

Jenis Monitor : LCD, 17.0″

Tipe LCD : HannStar HSD170MGW1, 2 lamps lebar

Made in Indonesia, Maret 2008 / Juni 2008

Gejala kerusakan :   – Power nyala sebentar lalu mati, tidak tampil, tidak ada gambar.

Tipe lain :

16EN33S-B, 16M35A-B, 16M38A-B, 17MB15T-B, 19EN33S-B, 19EN33V-B, 19M35A-B,19M37A-B, 19M38H-B, 19MB15T-B, 19MB35D-I, 19MN43A-PT, 20EN33S-B, 20EN33SS-B, 20EN33VS-B, 20M35A-B, 20M37A-B, 20M37H-B, 20M38A-B, 20M38H-B, 20MP47A-P, 20MP48A-P, 20MT45A-PT, 20MT47AC-PT, 20MT48AF-PT, 22EA63V-P, 22EN33T-B, 22EN43T-B, 22EN43V-B, 22M35A-B, 22M37A-B, 22M38A-B, 22M45H-B, 22M47VQ-P, 22MA33A-P, 22MA43A-PT, 22MN42A-PM, 22MN42A-PT, 22MP55HQ-P, 22MP57HQ-P, 22MP58VQ-P, 22MP65HQ-P, 22MP67HQ-P, 22MP68VQ-P, 22MT44A-PT, 22MT45A-PT, 22MT47A-PT, 22MT47AC-PT, 22MT48A-PT, 22MT48AF-PT, 23ET63V-W, 23ET83V-W, 23MP65HQ-P, 23MP67HQ-P, 23MP68VQ-P, 23MP75HM-P, 24GM77-B, 24M37H-B, 24MN33A-PT, 24MN42A-PT, 24MP55HQ-P, 24MP57HQ-P, 24MP58VQ-P, 24MP76HM-S, 24MP77HM-P, 24MP88HM-S, 24MT44A-PT, 24MT45A-PT, 24MT47A-PT, 24MT47V-PT, 24MT48A-PT, 24MT48N-PT, 27EA73LM-P, 27MP35HQ-B, 27MP75HM-P, 27MP77HM-P, 27MP77HM-P, 27MU67-B, 27UD68-W, 32MP58HQ-P, 787LE


ACER X193HQ

Model No. X193HQ.D
Version X193HQ.Db
Part No. ET.XX3HA.D03
Made in China, Oct 19, 2009

Gejala kerusakan :   – Power nyala sebentar lalu mati, tidak tampil, kedap-kedip, tidak ada gambar.

ACER X163w

Tipe LCD : AU Optronics M156XW01

ACER AL1516W

Part no. ET.LBB04.007
China, oct 2007

Tipe lain : AL1515, AL1516W, AL1517A, AL511, H193HQ, P166HQL, S231HL, V193HQV, V203HL, X163W, X193HQ, X193HQV


Tipe lain merek Acer :

A181HL, A181HV, A221HQV, A231H, A231HL, AL1511, AL1515, AL1516W, AL1521, AL1702, AL1703, AL1711, AL1712, AL1713, AL1714, AL1715, AL1716, AL1717, AL1721, AL1722, AL1731, AL1732, AL1751, AL1901, AL1911, AL1912, AL1913, AL1913W, AL1914, AL1916, AL1916W, AL1917W, AL1922, AL1923, AL1923W, AL1931, AL1951, AL2002W, AL2016W, AL2032W, AL2051W, AL2202W, AL2216W, AL2416W, AL2423W, AL2623W, AL506, AL511, AL512, AL513, AL532, AL533, AL707, AL708, AL711, AL712, AL715, AL718, AL732, AL801, AL922, B173, B193, B193L, B193W, B193WL, B196L, B196WL, B196L, B196WL, B203H, B203HV, B203W, B206HQL, B206WQL, B233PWL, B223W, B223WL, B226HQL, B226WL, B233HL, B233HU, B235HL, B236HL, B243H, B243HL, B243PHL, B243PWL, B243W, B243WL, B246HL, B 246HQL, B246HYL, B246WL, B273H, B273HL, B273HU, B273PHL, B276HK, B276HL, B276HUL, B286HK, B286HL, B296CL, B326HK, B326HUL, B346C, B346CK, BE240Y, BX320HK, BX340C, BX340CK, CB240HY, CB240HYK, CB241H, CB241HQK, CB241HY, CB241HYK, CB270HU, CB271H, CB271HK, CB280HK, CB281HK, CB290C, CB351C, D240H, D241H, D220HQL, D221HQL, D223HQL, D241HL, D245HQL, DW271HL, DC221HQ, E1900HQ, E2200HQ, E2400HY, EB192Q, EB210HQ, EB222Q, EB240HY, EB320HQ, EB321HQ, EB321HQU, ER320HQ, G185H, G185HV, G193WL, G195W, G195WL, G195WV, G196HQL, G196WL, G205H, G205HL, G205HV, G206HL, G206HQL, G215H, G215HL, G215HV, G223HQL, G226HQL, G227HQL, G233HL, G235H, G235HL, G236HL, G237HL, G24, G245H, G245HQ, G245HQL, G246HL, G246HQL, G247HL, G247HL, G247HYL, G247HYU, G257HL, G257HU, G276HL, G277HL, G277HU, GD235HZ, GN245HQ, GN246HL, GN276HL, GR235H, H193WV, H203H, H213H, H226HQL, H233H, H236HL, H243H, H257HU, H274HL, H276HL, H277H, H277HK, H277HU, H2N274H, HR274H, HS244HQ, P166HQL, P185H, P186H, P186HL, P186HV, P196HQV, P196WV, P199HQL, P199WL, P205H, P206H, P206HL, P209HQL, P215H, P216H, P216HL, P216HV, P221W, P224W, P226HQV, P229HQL, P235H, P236H, P236HL, P237HL, P238HL, P239HL, P241W, P244W, P246HL, P249HL, P249HQL, P278HL, P289HL, V173,V 176L, V183HL, V183HV, V193, V193L, V193W, V193WV, V195HQL, V195WL, V196HQL, V196L, V196WL, V203H, V203HL, V203HQL, V203HV, V203W, V205HL, V206HQL, V206WQL, V213H, V213HL, V213HV, V233PWL, V233W, V233WL, V225HQL, V225WL, V226HQL, V226WL, V233H, V235HL, V236HL, V243H, V243HL, V243HQ, V243HQL, V243PHL, V243PWL, V245HL, V246HL, V246HQL, V246HYL, V246WL, V273H, V273HL, V275HL, V276HL, VA190HQ, VA200HQ, VA220HQ, VA221Q


BenQ G925HDA

Model ID ET-0025-B
Type G925HDA
PN 9H.L2WLB.Q8P
Made in China, Mar 2010

Jenis Monitor : LCD, 18.5″

Tipe LCD : AU Optronics M185XW01 v.8

Gejala kerusakan :   – Tekan on/off tidak nyala, tombol panel keras.


Samsung SyncMaster 933n Plus

Model Code LS19CMYKFNA/XD
Type CM19WS
Made in Samsung, June 2009

Jenis Monitor : LCD, 18.5″

Tipe LCD : CHI MEI M185B1 -L02

Gejala kerusakan :   – Nyala lalu backlight / lampu kedap-kedip.


Samsung SyncMaster 733nw

Model 733NW
Type No. CM17WS
Model Code LS17CMNSFUXD
Made in Shenzhen, China, Sept, 2009

Jenis Monitor : LCD, 17.0″

Tipe LCD : HannStar HSD170MGW1, 2 lamps

Gejala kerusakan :   – Ada power, no display, nyala tapi tidak ada tampilan.

Model lain :

  • SyncMaster 152x, 172x
  • SyncMaster 152N, 172N, 192N, 153T, 173T, 174T, 193T
  • SyncMaster 510M, 710M, 910M, 710V, 910V
  • SyncMaster 510N, 710N, 910N, 510T, 710T, 910T, 913N
  • SyncMaster 720B, 721B, 720T, 920T
  • Syncmaster 510T, 515V*, 512N*, 710T, 711T, 710TM, 712N*, 910T, 912T, 913N,
    913T, 910TM, 912N*, 915N*
  • Syncmaster 510M, 710V, 710M, 73V, 74V, 713V*, 715V*,910V, 910M, 913V, 93V,
    94V, 915V*
  • Syncmaster 730B, 930B
  • Syncmaster 173P




Compaq w185q

P/N NM972A
Regulatory Model No. HSTND-2511-T
Made in China, July 2010

Jenis Monitor : LCD, 18.5″

Tipe LCD : LG LM185WH1, 2lamps

Gejala kerusakan :   – Tampilan layar bagian atas agak gelap / redup.


syncmaster 743nxSamsung SyncMaster 743nx

Model 743nx
Type No. MY17LS

Jenis Monitor : LCD, 17.0″

Tipe LCD : Chunghwa CLAA170EA, 4 lamps

Gejala kerusakan :   – Tidak nyala, tidak ada tampilan.

 Tipe lain :

LA22A450, LA32R81B, LS19A100, SYNCMASTER  633NW, SYNCMASTER  933, SYNCMASTER 171S, SYNCMASTER 173V, SYNCMASTER 510N, SYNCMASTER 540N, SYNCMASTER 713N, SYNCMASTER 720N, SYNCMASTER 732N, SYNCMASTER 732N+, SYNCMASTER 732NW, SYNCMASTER 733N, SYNCMASTER 733NW, SYNCMASTER 740N, SYNCMASTER 740NX, SYNCMASTER 743NX, SYNCMASTER 931BW, SYNCMASTER 932B, SYNCMASTER 932B PLUS, SYNCMASTER 932GW, SYNCMASTER 933, SYNCMASTER 933N PLUS, SYNCMASTER 943, SYNCMASTER 943BWX, SYNCMASTER 953BW, SYNCMASTER B1630, SYNCMASTER B1930, SYNCMASTER B1930N, SYNCMASTER E1920, SYNCMASTER E1920 NX, SYNCMASTER S16A100N, SYNCMASTER S19B310, SYNCMASTER SA10, SYNCMASTER SA300, SYNCMASTER SA350, SYNCMASTER SA550, SYNCMASTER T220, UA22ES5000


hp 1502 lcd

HP 1502

Product No P9617D
Spare no 333354-001
Model name : L1502

Main in China, December 2004

Jenis Monitor : LCD, 15.0″

Tipe LCD : –

Gejala kerusakan :   – Tidak nyala, tidak ada tampilan, mati.


HP L1506 / L1506s

Product Number GL831A
Regulatory Model No HSTND-2A06
Made in China, Dec 2007

Tipe LCD : LG Philips LM150X08, 15.0″

Gejala kerusakan :   – Kedip-kedip, tidak nyala, tidak ada tampilan, mati.

 Tipe lain :

HP L1750, L1950/L1950g, L1710, L1910, L1908w, L1908wm, L1945w, L1945wv, L2208w, L2245w/L2245wg, L2445w, LE1711, VP15s, VS17e, W1907, L1906, VS19e, ProDisplay P17A, P221, EliteDisplay E190i, E201, E221c, E231, E241i, E271i,  Z Dsiplay Z22i, Z24i, Z27i, Z27x, Z30i, DreamColor Z24x,   V201a, W2072a, ProDisplay P201

Image result for lcd prolink 171tPROLINK PRO171T

menggunakan adaptor 12V 3.5A, bisa dipasang Touch Screen
Made in China

Tipe LCD : 17″ kotak

Gejala kerusakan :   – Tidak nyala, tidak ada tampilan, mati, adaptor rusak.








ViewsonicViewsonic

Tipe lain :

VG2230WM, VP171B, VX2000, VE710B, VA703M, VS12440, VA1928WM, VX1940W, VA22226W, VP1716, VP171B, VG2021M, VA1912WB, VA702B, VA703M-3, WA19W

VE700, VE710B, VA1928wm, VA1912wb, VA1930wm, VA703M, VA712, VA912B, VA702B, VA2026w, VA1938wa, VA926wa, VA2212m, VA1912m, VA1912a, VA2248m, VA 2448m, VA2047m

VG730m, VG2021m, VG2230wm, VG2232wm, VG1932wm, VG732m, VG2239m, VG2228wm

VP930b, VP2365, VP2765, VP2770, VP2772

VX724, VX922, VX924, VX1912wb, VX1935wm, VX1940w, VX2235wm, VX2240w, VX2245wm, VX2250wm, VX2252mh, VX2270mh

VA1903a, VA2055Sm, VA1603a, VA1620a-LED, VA1917a, VA1921a, VA951S, VA2046a-LED, VA2249S, VA2265S, VA2265Sh, VA2265Smh, VA2349S, VA2465S, VA2465S-2, VA2465Sh, VA2465Smh, VG932m, VG2228wm, VG2233Smh, VG2239m, VG2437mc, VG2439m, VG2401mh, VG2401mh-2, VG2732m, VP2780-4K, VX2252mh, VX2257-mhd, VX2260S, VX2263S, VX2263Smhl, VX2263Smhl-W, VX2270S, VX2363Smhl, VX2370S, VX2370Smh, VX2452mh, VX2457-mhd, VX2475Smhl-4K, VX2573-sg, VX2573-shw, VX2757-mhd, VX2771-smhg, VX2771-smhv-2, VX2858Sml, VX2880ml


HP 2311x

Brand : HP

Full HD 1920 X 1080 resolution

3,000,000:1 Dynamic Contrast Ratio

LED backlighting

Ultra-slim 23-Inch diagonal monitor

Keluhan : Layar bergaris

Model lainnya : HP 2011x, HP 2211x, HP 2511x, HP 2711x










 HP Pavilion MS200

Brand : HP

Tipe : Dekstop PC All-in-one

Prosesor : AMD Athlon 1.5GHz

Keluhan : Mati / Tidak hidup

Model lainnya : HP Paviliun MS200-5112D, HP Paviliun MS216D










 LG FLATRON L1753S

Brand : LG

Tipe layar : LCD

Resolusi : 1280×1024

Power tipe : LIPS(LCD Integrated Power Supply)

Keluhan : Mati / tidak hidup

Model lainnya : lg flatron l1742se, lg flatron l177wsb, lg flatron l1553s, lg flatron l1942se, lg flatron l1752s








 AOC E1670S

Brand AOC

Monitor komputer

LED

Power consumption : 7W

HDMI, USB, DVI-D, D-SUB(VGA)

Keluhan : gambar goyang

Model lainnya : AOC E2070SWNL, AOC E1670SWU, AOC E2250SWD, AOC E2251FWU, AOC E970




PANASONIC GT05 PANASONIC GT05

Brand : Panasonic

Model : GT05 AIG05SQ04D

Touch panel

Gejala kerusakan : berhenti / stuck di logo

Model lainnya : Panasonic GT05 AIG05GQ02D Touch Panel




DELL E2219HNDELL E2219HN

Brand : Dell

Model : E2219HN

Panel Tipe : IPS

Voltage required : AC 120/230 V (50/60 Hz)

Power consumption : 14.2 Watt (operational), 0.3 Watt (sleep, standby)

Gejala kerusakan : LED mati / tidak hidup




HP PAVILION 20fiHP PAVILION 20fi

Brand : HP

Model : Pavilion 20fi

Power consumption : 22 Watt

Panel tipe : IPS

Gejala kerusakan : Mati total / tidak bisa hidup

Model lainnya : HP E242, HP EliteDisplay E220t, HP E232




ASUS VX24AASUS VX24A

Brand : Asus

Model : VX24A

Jenis : Monitor komputer

Tipe : LCD

178 Watt

Gejala kerusakan : Layar bergaris, mati tiba-tiba

Model lainnya : Asus VX207DE




VIEWSONIC VA1903aVIEWSONIC VA1903a

Brand : Viewsonic

Model : VA1903a

Jenis : Monitor komputer

Tipe monitor : LED

Gejala kerusakan : Layar pecah

Model lainnya : Viewsonic VA1601, Viewsonic VA2261, Viewsonic VA1921a, Viewsonic VA1938, Viewsonic VA2013WM






LG 19M38A LG 19M38A

Brand : LG

Model : 19M38A

Input : 100-240Vac, 50/60Hz

Daya : 13 Watt












SMALLHD AC7SMALLHD AC7

Brand : SmallHD

Model : AC7

Display : 7″ IPS LCD

Power Consumption : 12 Watt

Power option : 7~18V

DC Input : DC Port






LG FLATRON L1953S-BFLG FLATRON L1953S-BF

Brand : LG

Model : L1953S-BF

Power : 33  Watt

Power Tipe : LIPS(LCD Integrated Power Supply)








DELL E178WFPcDELL E178WFPc

Brand : Dell

Model : E178WFPc

Tipe : LCD Monitor

Connector tipe : Analog VGA








ASUS MX239ASUS MX239H

Brand : Asus

Model : MX239H

Jenis : Monitor komputer

Tipe : LED

Power : 22 Watt

Gejala kerusakan : Hidup lalu mati

Model lainnya : Asus MX279H, Asus MX259H








SAMSUNG LS19F350HNE

Brand : Samsung

Model : LS19F350HNE

Jenis : Monitor komputer

Tipe : LED

Power : 15 Watt

Gejala kerusakan : Mati

Model lainnya : Samsung S22F350, Samsung S27F350






LG FLATRON E1940SLG FLATRON E1940S

Brand : LG

Model : Flatron E1940S

Power : 21 Watt

Gejala kerusakan : Lampu power kedip kedip, layar mati












ACER AL2416WACER AL2416W

Brand : Acer

Model : AL2416W

Tipe : LCD monitor

Voltage : AC 120/230 V

Frequency required : 50/60 Hz

Gejala kerusakan : Mati










DELL U2312HMtDELL U2312HMt

Brand : Dell

Model : U2321HM

Voltage required : 100 to 240 VAC / 50 or 60 Hz + 3Hz / 1.5 A (Max)

Power consumption : 30W(typical) / 70W(maximum)

Gejala kerusakan : Mati total












AOC E2070SWNLAOC E2070SWNL

Brand : AOC

Model : E2070SWNL

Jenis : Monitor komputer

Gejala kerusakan : Layar kedip lalu mati

Model lainnya : AOC E1670S, AOC E1670SWU, AOC E2251FWU, AOC E970, AOC E2060V










LG 24MP88HMLG 24MP88HM

Brand : LG

Model : 24mp88hm

Jenis : Monitor komputer

Tipe : LED

Power : 18 W

Gejala kerusakan : Layar bergaris










LG 22MN42ALG 22MN42A

Brand : LG

Model : 22MN42A

Tipe : LED

Daya : 30 Watt

Gejala kerusakan : Mati total

Model lainnya : LG 19MN43A, LG 24MN33A










LG FLATRON 29EA93 LG FLATRON 29EA93

Brand : LG

Model : Flatron 29EA93

Power : 48 Watt

Gejala kerusakan : Layar bergaris dan tampilan bergetar/goyang












DELL E198FPDELL E198FP

Brand : Dell

Model : E198FP

Resolusi : 1280×1024

Display tipe : LCD

Power : 75 W

Nominal Voltage : AC 120/230 V

Frequency required : 50/60 Hz

Gejala kerusakan : Nyala tapi tidak ada tampilan

Model lainnya : Dell E193FP, Dell 196FP, Dell 197FP




HP ZR2240WHP ZR2240W

Brand : HP

Model : ZR2240W

Input power : 90 – 265 V ac, 50 to 60 Hz

Max power : 52 W

Gejala kerusakan : Layar bergaris, kadang hidup lalu mati








LENOVO THINKVISION P24Q-10LENOVO THINKVISION P24Q-10

Brand : Lenovo

Model : ThinkVision P24Q-10

Power consumption : 67 Watt

Tipe : LED

Gejala kerusakan : Tidak ada tampilan










DELL P2012HTDELL P2012HT

Brand : Dell

Model : P2012H

Volatge required : 100 to 240 VAC / 50 or 60 Hz ± 3Hz / 1.5 A

Power consumption : 45 Watt (max)

Backlight : LED

Gejala kerusakan : Mati






HP V194HP V194

Brand : HP

Model : V194

Jenis : Monitor komputer

Tipe : LED

Power : 17 Watt

Gejala kerusakan : Layar ngeblok orange






DELL ST2320LFDELL ST2320L

Brand : Dell

Model : ST2320L

Tipe monitor : LCD

Power consumption : 30 Watt

Gejala kerusakan : Mati total

Model lainnya : Dell ST2420L, Dell S2419H, Dell S2716DG, Dell SE2717H, Dell S2240T






ACER G195HQVACER G195HQV

Brand : Acer

Model : G195HQV

Input voltage : 110 V AC

Power : 20 W

Gejala kerusakan : Layar bergaris, layar goyang






BENQ G610HDALBENQ G610HDAL

Brand : BenQ

Model : G610HDAL

Power : 15 W

Nominal voltage : AC 120/230 V

Tipe : LED-backlit LCD monitor

Gejala kerusakan : Mati total




DELL U2515HCDELL U2515HC

Brand : Dell

Model : U2515H

Jenis : Monitor komputer

Tipe monitor : LED

Panel tipe : IPS

Power : 35 Watt

Gejala kerusakan : Nyala tapi tdak keluar tampilan

Model lainnya : Dell U2715H


LG Flatron L1752SLG Flatron L1752S

Brand : LG

Model : L1752S

Tipe : LED

Power : 35 Watt

Jenis : Monitor komputer

Gejala kerusakan : Mati total

Model lainnya : LG L1742SE, LG L1942SE


SAMSUNG UA22ES5000SAMSUNG UA22ES5000

Brand : Samsung

Model : UA22ES5000

Jenis : TV

Tipe : LED

Power supply : AC100-240V 50/60Hz

Power consumption (max): 0.3 Watt

Gejala kerusakan : nyala tapi tidak tampil, indikator lampu power kedip-kedip


BENQ ZOWIE XL2720BENQ ZOWIE XL2720

Brand : BenQ

Model : Zowie XL2720

Jenis : Monitor komputer

Power : 50 Watt

Gejala kerusakan : Layar goyang, kedip-kedip

Model lainnya : BenQ Zowie XL2540, BenQ Zowie XL2735, BenQ Zowie XL2546


JVC DT-R17L4DJVC DT-R17L4D

Brand : JVC

Model : DT-R17L4D

Tipe : Multi Format

Power requirementa : AC 120/220-240 V, 50/60 Hz

Gejala kerusakan : nyala sebentar lalu mati

Model lainnya : JVS DT-U31E, JVS DT-V24G2, JVS DT-V17G2, JVS DT-G24E, JVS DT-G27E, JVS DT-G17E, JVS DT-G21E, JVS DT-N24F, JVS DT-L15L4U, JVS DT-L17L4GU, JVS DT-E21L4U, JVS DT-R24L4IDU, JVS DT-F9L5U, JVS DT-V9L5U, JVS DT-V17G15E, JVS DT-V17G1Z, JVS DT-V24G1Z, JVS DT-X91HX2, JVS DT-X71HX2, JVS DT-X51HX3, JVS DT-X92F, JVS DT-X92H, JVS DT-X71CI, JVS DT-X71HI, JVS DT-X71FI, JVS DT-X92HX2, JVS DT-X16H, JVS DT-X21H, JVS DT-X24H, JVS GD-W192, JVS GD-W232, JVS DT-3D24G1


DELL UltraSharp U2518DDELL UltraSharp U2518D

Brand : Dell

Model : UltraSharp U2518D

Tipe : LED Monitor

Power consumption : 110 Watt

Gejala kerusakan : –






AOC 24B1XHSAOC 24B1XHS

Brand : AOC

Model : 24B1XHS

Layar : 23.8 inch

Backlight : WLED

Resolusi : 1920×1080

Power source : 100 – 240V 50/60Hz

Power consumption : 25 Watt

Gejala kerusakan : Layar bergaris


LG 27MP89HMLG 27MP89HM

Brand : LG

Model : 27MP89HM

Tipe monitor : LED

Jenis : Monitor komputer

Layar : 27 inch

Panel tipe : IPS

Power consumption : 20.3 W

Gejala kerusakan : Layar bergaris


HP 2309MHP 2309M

Brand : HP

Model : 2309M

Layar : 23 inch

Input rating : 100 to 240V~

Frequency : 50~60Hz

Power consumption : 45.5 watts maximum power consumption in operating mode

Gejala kerusakan : Mati total


ACER XB271HUACER XB271HU

Brand : Acer

Model : XB271HU

Tipe : LCD

Layar : 27 inc

Panel tipe : IPS

Jenis : Monitor Komputer

Gejala kerusakan : Layar tidak ada tampilan






SAMSUNG C24F390FHESAMSUNG C24F390FHE

Brand : Samsung

Model : C24F390FHE

Layar : 24 inch

Display type : LED Curve

Gejala kerusakan : Layar bergaris






XTOOL PS90 Diagnosis SystemXTOOL PS90 Diagnosis System

Brand : XTOOL

Model : PS90 CAR Diagnosis System

Power Voltage : 5V

Power Consumption : 6W

Bluetooh/Wifi : Yes

CPU : Rockchip 4 Core, 1.6GHz

Item Type : Engine Analyzer

Manufacture : China

Gejala kerusakan : Layar tidak ada tampilan

Model Lainnya : xTool PS701, xTool PS70PRO, xTool PS90PRO


http://palapa-jkt.com/apps/uploads/gs27u.jpgMONOPRICE GS27U

Brand : Monoprice

Model : IIIP GS27U

Layar : 27 inch

Panel tipe : IPS

Backlight : LED

Input power : 100 ~ 240 VAC, 50/60 Hz, 2A

Gejala kerusakan : Layar bergaris


http://palapa-jkt.com/apps/uploads/rog%20swift%20pg27a.jpg ASUS ROG SWIFT PG27A

Brand : Asus

Model : ROG Swift PG27A

Layar : 27 inch

Panel tipe : IPS

Resolusi : 3840 x 2160pixels

Gejala kerusakan : Mati total

Model Lainnya : Asus ROG PG65UQ, Asus ROG PG279Q, Asus ROG PG258Q, Asus ROG PG348Q, Asus ROG PG259QN, Asus ROG PG279QM, Asus ROG PG32UQX, Asus ROG PG27UQ, Asus ROG PG248Q, Asus ROG PG35VQ


MSI OPTIX G24C4MSI OPTIX G24C4

Brand : MSI

Model : Optix G24C4

Prosesor : Intel Core i3-2100

Layar : 21.5 inch

VGA Invidia GeForce GT540M

Power consumption : 35W

Power input : 100~240V, 50~60Hz

Gejala kerusakan : Layar pecah

Model Lainnya : MSI Optix G241, MSI Optix G242, MSI Optix G241, MSI Optix G27C4, MSI Optix G241, MSI Optix G271


DRAGER SAVINA 8414000DRAGER SAVINA 8414000

Brand : Drager

Model : Savina 8414000

Jenis : Ventilator

Power consumption : 100 watt

Power connection : 100 V to 240 V, 50/60 Hz AC, 10 to 36 VDC

Gas supply : Air Turbine technology

Gejala kerusakan : Restar

Model Lainnya : Drager savina 300


GE LOGIQ P5 UltrasoundGE LOGIQ P5 Ultrasound

Brand : GE

Model : Logiq P5 Ultrasound

Voltage : 100-120 VAC or 220-240 VAC

Frequency : 50/60 Hz

Power Max : 750 VA with Built-in and on-board Peripherals

Probe tipe : Convex, Endocavitary, Linear

Application : Abdominal, Cardiology, Elastography, Gynecology, Musculoskeletal, Obstetrics, Pediatrics, Peripheral vascular, Transcranial, Urology

Gejala kerusakan : Layar tidak tampil

Model Lainnya : GE Logiq S8, GE Vivid S6, GE vivid iq, GE vivid i, GE vivid T8, GE Voluson I, GE Voluson P6, GE Logiq E9


SIEMENS EIZO DSHC 1914-DCSIEMENS EIZO DSHC 1914-DC

Brand : Siemens EIZO

Model : Color Monitor DSHC 1914-DC

Part Number : 6GF6210-2CP01

Power Supply : 100-240 VAC 1.0-0.5A 50-60Hz

Model Lainnya : DSHC 1915-DC, DSC 1904-D, DSB 1803-DC, DSB 1906-DC








PFXSTW6700WADPFXSTW6700WAD

Brand : Proface

Model : HMI Proface PFXSTW6700WAD | STW-6700WA

Layar : 15.6 inch

USB (Type A)

Power supply voltage : 5 Vdc ±5 %

Output current : 500 mA or less

Model Lainnya : STW-6600WA Model No PFXSTW6600WAD 12″ Wide (WXGA), STW-6500WA Model No PFXSTW6500WAD 10″ Wide (WSVGA), STW-6400WA Model No PFXSTW6400WAD 7″ Wide (WVGA), STW-6200WA Model No PFXSTW6200WAD 4″ Wide (WQVGA)


PFXLM4301TADDC

PFXLM4301TADDC

Brand : Proface

Model : HMI PFXLM4301TADDC Touchscreen

TFT Color LCD

320 x 240 (QVGA)

Input voltage : 24 Vdc

Power consumption : 10 W or less

Insulation resistance between power terminal and FG : 10 MΩ or higher at 500 Vdc

Protection structure : NEMA TYPE 4X (indoors, with panel embedded)

Cooling method : Natural air circulation

Model Lainnya : LT-4301M Model PFXLM4301TADDC Analog, LT-4201M DIO Model PFXLM4201TADDC, LT-4201M DIO Model PFXLM4201TADDC, LT-4201M Analog Model PFXLM4201TADAK


PFXGP4601TADPFXGP4601TAD

Brand : Proface

Model : HMI PFXGP4601TAD Touchscreen

Layar 12.1 inch

Resolusi : 800 x 600 pixels (SVGA)

Input voltage : 24 Vdc

Power consumption : 17 W or less

Model Lainnya : GP-4601T Model PFXGP4601TAA HMI Touchscreen, GP-4601T Model PFXGP4601TMA HMI Touchscreen, GP-4601T Model PFXGP4601TMD HMI Touchscreen, GP-4501T Model PFXGP4501TAA HMI Touchscreen, GP-4501T Model PFXGP4501TMD HMI Touchscreen, GP-4401T Model PFXGP4401TAD HMI Touchscreen, GP-4401WW Model PFXGP4401WADW HMI Touchscreen, GP-4301T Model PFXGP4301TAD HMI Touchscreen, GP-4303T Model PFXGP4303TAD HMI Touchscreen, GP-4201T Model PFXGP4201TAD HMI Touchscreen, GP-4203T Model PFXGP4203TAD HMI Touchscreen, GP-4301TM Model PFXGM4301TAD HMI Touchscreen, GP-4201TW Model PFXGP4201TADW HMI Touchscreen, GP-4401WW Model PFXGP4401WADW HMI Touchscreen, GP-4501TW Model PFXGP4501TADW HMI Touchscreen, GP-4621T Model PFXGP4621TAD HMI Touchscreen, GP-4521T Model PFXGP4521TAD HMI Touchscreen, GP-4603T Model PFXGP4603TAD HMI Touchscreen


PFXLM4301TADDCPFXLM4301TADDC

Brand : Proface

Model : HMI PFXLM4301TADDC Touchscreen

TFT Color LCD

320 x 240 (QVGA)

Input voltage : 24 Vdc

Power consumption : 10 W or less

Insulation resistance between power terminal and FG : 10 MΩ or higher at 500 Vdc

Protection structure : NEMA TYPE 4X (indoors, with panel embedded)

Cooling method : Natural air circulation

Model Lainnya : LT-4301M Model PFXLM4301TADDC Analog, LT-4201M DIO Model PFXLM4201TADDC, LT-4201M DIO Model PFXLM4201TADDC, LT-4201M Analog Model PFXLM4201TADAK


PFXSTW6700WADPFXSTW6700WAD

Brand : Proface

Model : HMI Proface PFXSTW6700WAD | STW-6700WA

Layar : 15.6 inch

USB (Type A)

Power supply voltage : 5 Vdc ±5 %

Output current : 500 mA or less

Model Lainnya : STW-6600WA Model No PFXSTW6600WAD 12″ Wide (WXGA), STW-6500WA Model No PFXSTW6500WAD 10″ Wide (WSVGA), STW-6400WA Model No PFXSTW6400WAD 7″ Wide (WVGA), STW-6200WA Model No PFXSTW6200WAD 4″ Wide (WQVGA)


ACTION AT-2151ACTION AT-2151

Brand : Action

Model : AT-2151 Ultra Bright HD Action Monitor Kit

Layar : 21.5′ LCD Monitor

Video input : 3G / HD / SD-SDI / 2 x BNC / HDMI 1.3 x 1

1000:1 Contrast Ratio

Brightness : 1200cd/m²






ICOM IC-M45AICOM IC-M45A

Brand : ICOM

Model : IC-M45A (Marine VHF Mobile Radio)

Frekuensi (MHz) : 156,025 – 163,275

O / P Power : 25 watt

Jenis : VHF Marine

Kisaran Frekuensi Umum: Transmit: 156.025 -157.425 MHz; Receive: 156.025 – 163.275 MHz

Saluran yang dapat digunakan: Semua saluran USA, Internasional dan Kanada, ditambah 10 saluran

cuacaMode: FM (16K0G3E) Power Supply: 13,8 V DC +/- 15% Current Drain (di 13.8 V DC): Transmit: Kurang dari 6 AReceive: 1.2 A (max. Audio) Kisaran Suhu yang Berguna: -20 C hingga + 60 C (-4 F hingga + 140 F) Konektor antena: 50 ohm (SO -239), MMSI injection, MMSI clone, MMSI reprogram

Gejala kerusakan : LCD display mati


Sealink HX2000Sealink HX2000

Brand : Sealink

Model : HX2000

Manufacture : China

Input : DC 12V (+30 / -10%)

Frequency : 156.025MHz~­­163.275MHz

HX2000 meet lTU-RM.493-13 on DSC system requirements

MMSI injection, MMSI clone, MMSI reprogram

Gejala kerusakan : LCD display mati

Model Lainnya : Furuno GF-1971F, Furuno NX-300, Samyung SRG-3150DN, JRC JHS-800S, NVR-1000, Furuno FS-2575, ICOM GM600, HM-1512N, Telephone Marine D908 Marine Transceiver


Weinview MT8102iEWeinview MT8102iE

Brand : Wienview

Model : Weintek MT8102iE

Jenis : HMI

Manufacture : China

Display 10.1 inc

Gejala kerusakan : Mati






MX MARINE MX420 Navigation SystemMX MARINE MX420 Navigation System

Brand : MX Marine

Model : MX420 Navigation System

Voltase : 12-24 VDC 11w

Manufacture : Denmark

Jenis : GPS Navigation System

Model Lainnya : Furuno SC-502, MX-510, North star 952X, Navman tracker 5600 marine, MX Marine MX421-10, Leica AP MK20, Raytheon RC520


BENQ PL490BENQ PL490

Brand : BenQ

Model : PL490

screen size : 49 inch

Panel tipe : IPS

Resolusi : FHD 1920 x 1080 pixel

Power : AC 100-240V 50/60Hz

Voltase : 100V ~ 240V, 50Hz / 60Hz


DELL Latitude 7220

DELL Latitude 7220

Brand : Dell

Model : Latitude 7220 Rugged Extreme Tablet

Jenis : Tablet

Display : 11.6″ (1920 x 1080)

Power : 45W AC Adapter

Gejala kerusakan : FAN mati

Model Lainnya : Latitude 7230 Rugged Tablet, Latitude 7212 Rugged Tablet


FS-P2404DFS-P2404D

Brand : FSN

Model : FS-P2404D Surgical Medical Display

Size screen : 24 inch TFT LCD (LED)

Resolution : 1920 x 1200 pixels

Input signal : 1 x DVI-D 1 1 x DVI-D 2 (optional) 1 x VGA (D-sub) 1 x SD/HD/3G-SDI (BNC) 1 x C-Video (BNC) 1 x S-Video (Y/C) (2 x BNC) 1 x Component (RGBS, YPbPr) (5 x BNC)

Output signal : 1 x DVI-D 1 x SD/HD/3G-SDI (BNC)

Power supply : AC/DC Adaptor (AC 100~240V, DC 24V 5A)

Model Lainnya : FS-P2603D, FS-P2604D


FS-L2403DFS-L2403D

Brand : FSN

Model : FS-L2403D Surgical Medical Monitor

Input : DVI, SDI, VGA, SVideo

Screen size : 24 inch

Resolution : 1920 x 1200 pixel

Display : LED FHD

Model Lainnya : FS-L2702D, FS-L2702DT, FS-L3202D


FS-E2101DFS-E2101D

Brand : FSN

Model : FS-E2101D

Panel : 21.5 inch TFT LCD (LED)

Resolusi : 1920 x 1080 pixel

Input signal : 1 x DVI-D (single link) 1 x VGA 1 x SDI (SD/HD/3G)

Output signal : 1 x SDI (SD/HD/3G)

Power supply : AC/DC Adaptor (AC 100~240V, DC 12V 5A)

Power consumption : 40W max

Model Lainnya : FS-E2101DT


FS-Y1901DFS-Y1901D

Brand : FSN

Model : FS-Y1901D

Screen type : TFT LCD (IPS)

Screen size : 19 inch

Display resolution : 1280 x 1024 pixel

Input connector : 1 x DVI‐D, 1 x VGA (D-sub), 1 x SD/HD/3G‐SDI (BNC), 1 x C-Video (BNC), 2 x S-Video (Y/C) (BNC), 1 x Component (RGBS, YPbPr) (5 x BNC)

Power input requirment : AC/DC Adaptor (AC 100~240V, DC 12V 7A)

Modality : surgical


SIEMENS SIMATIC IPC277DSIEMENS SIMATIC IPC277D

Brand : Siemens

Model : SIMATIC IPC277D HMI

CPU / RAM : 1.3 HJz / 2GB RAM

Front : 12″ Widescreen with front-side USB Support








Model lain yang sedang beredar di pasaran Jakarta & sekitarnya :

Acer 15.6 Inch P166HQL LED
Acer 18.5 Inch V195HQV
Acer 20 Inch P206HL LED
Acer 20 Inch V203HL LED
Acer 23 Inch V233HL LED
Acer 24 Inch GN245HQ + Kacamata 3D NVIDIA
Acer 24 Inch S243HL LED
Advance 14 Inch LT1470 LED+TV+Speaker
Advance 15.6 Inch LM 1670 Lumine LED+Speaker
Advance 22 Inch V2220 LCD+TV+Speaker HDMI
AOC 15.6 Inch 1619SW
AOC 15.6 Inch E1620SWB
AOC 18.5 Inch E943FW LED
AOC 18.5 Inch N950SW
AOC 19.5 Inch E2043FK LED
AOC 23 Inch 2434PW
AOC 23 Inch I2340V
AOC 24 Inch V24T
Asus 15.6 Inch VH162D
Asus 18.5 Inch VH192D
Asus 18.5 Inch VH197T LED + Speaker
Asus 20 Inch MS202N
Asus 21.5 Inch VH222H
Asus 23 Inch VG236HE
Asus 24.1 Inch PA246Q
Asus 27 Inch VE278Q
BenQ 15.6 Inch G610HDAL LED
BenQ 17 Inch Square G702AD
BenQ 18.5 Inch G925HDA
BenQ 18.5 Inch GL930A LED
BenQ 18.5 Inch V920P LED
BenQ 21.5 Inch GL2230
BenQ 21.5 Inch T2210HD
BenQ 21.5 Inch V2220HP LED Slim (Glare Panel,Backlight Technology)
BenQ 23.6 Inch XL2410T (For Professional Gamers)
BenQ 24 Inch G2420HD
BenQ 24 Inch V2420H LED (Backlight Technology)
BenQ 27 Inch M2700HD
Chimei 15.6 Inch CMV655A
Chimei 18.5 Inch CMV-95ND
Chimei 21.5 Inch 22VD LED
Chimei 21.6 Inch 22QD
Chimei 23 Inch CMV23-LH LED
Chimei 24 Inch CMV24-LH
DELL 17 Inch IN1720
DELL 17 Inch S1709W
DELL 18.5 Inch IN1920
DELL 20 Inch IN2020M LED HD
DELL 20 Inch S2009W
DELL 21.5 Inch P2211H LED
DELL 21.5 Inch P2220T Touch Screen
DELL 23 Inch Alienware AW2310
DELL 23 Inch ST2320L LED Full HD
DELL 24 Inch ST2420L LED Full HD+HDMI
Envision 18.5 Inch H819
Envision 21.5 Inch G2261W (Bonus UFD 4Gb)
Evio 15 Inch Square
Evio 15 Inch Wide Screen
Forsa 15.6 Inch Touch Screen LED
Forsa 15.6 LED
Fujitsu 18.5 Inch 905G DVI
Fujitsu 22 Inch 2205G DVI
GTC 15.4 Inch LD 500WNK Wall Mounting
GTC 15.6 Inch LD160W
GTC 15.6 Inch LD600WNT Wall Mounting
GTC 17 Inch LD170W LED
GTC 18.5 Inch LD800W LED
GTC 18.5 Inch LT185W LED (Monitor TV)
GTC 19 Inch LD901W
GTC 20.5 Inch LD210W LED
HP 23 Inch X2301 DVI+HDMI+Full HD LED
Lenovo 20 Inch L2060
LG 15.6 Inch 1643S
LG 16 Inch E1600S-PN LED
LG 16 Inch N16421W
LG 17 Inch L1742S-PF
LG 17 Inch L177WSB-PF
LG 18.5 Inch 1960S
LG 18.5 Inch E1941S LED
LG 18.5 Inch W1953S-PF
LG 19 Inch L1942S (Square)
LG 20 Inch E2050T / E2060T
LG 21.5 Inch E2241T LED
LG 21.5 Inch E2290V
LG 21.5 Inch M2241A
LG 22 Inch 227WAP
LG 22 Inch E2250V
LG 22.5 Inch M2341A
LG 22.5 Inch W2360V
LG 22.5 Inch W2363D
LG 23 Inch W236D
LG D2342P (3D LED) + Glasses
NS 15 Inch LED
Phillips 15.6 Inch 160EL1SB
Phillips 17 Inch 17S1SB
Phillips 18.5 Inch 191EL2SB LED
Phillips 18.5 Inch 192E2SB
Phillips 21.5 Inch 222EL2SB
Phillips 21.6 Inch 221E1HSB 1920×1080,Wide,Black,HDMI
Phillips 22 Inch 220CW9FB
Phillips 22 Inch 220X1SW
Phillips 24 Inch 240B1CB
Power Max 16 Inch LED
Power Max 17 Inch LED
Samsung 15.6 Inch B1630
Samsung 18 Inch S19A300N LED
Samsung 18.5 Inch B1930
Samsung 18.5 Inch E1920N
Samsung 19 Inch S19A350N
Samsung 20 Inch B2030 / E2020
Samsung 22 Inch B2230HN HDMI+Full HD+TV Tuner
Samsung 22 Inch BX2231
Samsung 22 Inch S22A350
Samsung 23 Inch PX2370 HDMI
Samsung 23 Inch S23A550
Sky View 17.3 Inch LED
Sky View 20 Inch LED
Viewsonic 15.6 Inch VA-1601-LED 1366×768,20001:1.8ms,Wall Mounting,Black
Viewsonic 18.5 Inch VA-1931WM LED
Viewsonic 18.5 Inch VA-1931WMA
Viewsonic 19 Inch VX-1937WM+DVI
Viewsonic 21.5 Inch VA-2223WM
Viewsonic 22 Inch VX2237WM
Viewsonic 22 Inch VX2250WM LED
Viewsonic 28 Inch VX-2835WM HDMI
